Cesium 可以加载来自ArcGIS、BingMap、GoogleMap、OSM等各种数据源，本文主要介绍加载TMS切片的功能。
TMS的切片有不同的变种。我们使用QGIS自带的GDAL2TILES生成TMS切片。
步骤
1 生成切片

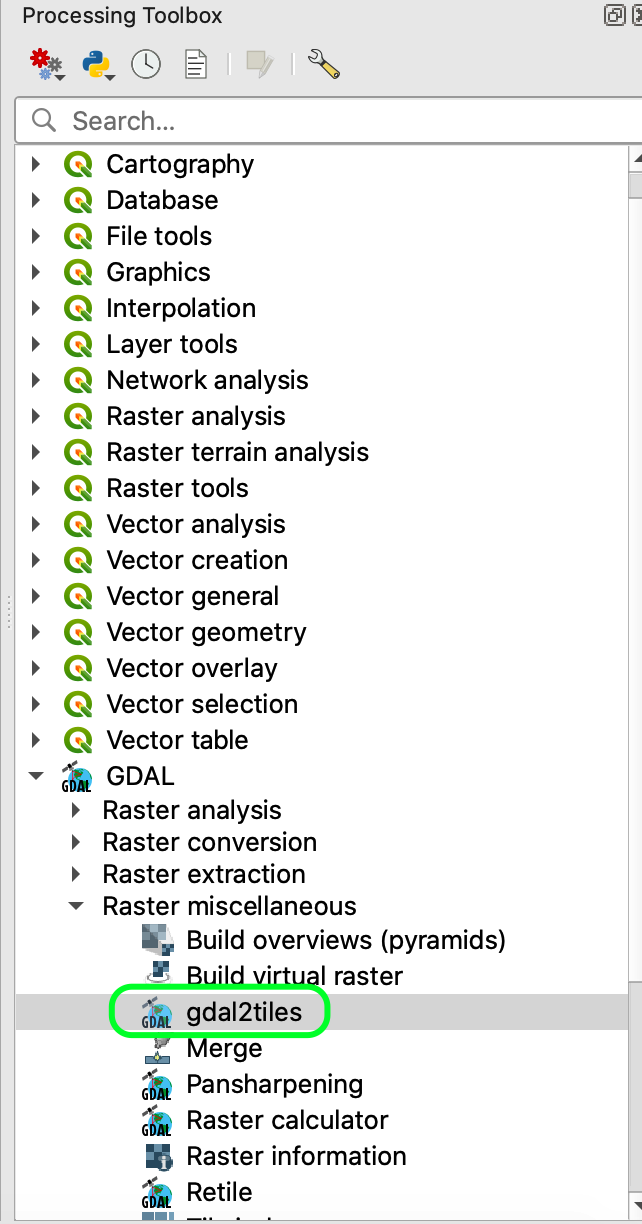

打开QGIS的工具箱，目录GDAL–Raster miscellaneous–gdal2tiles

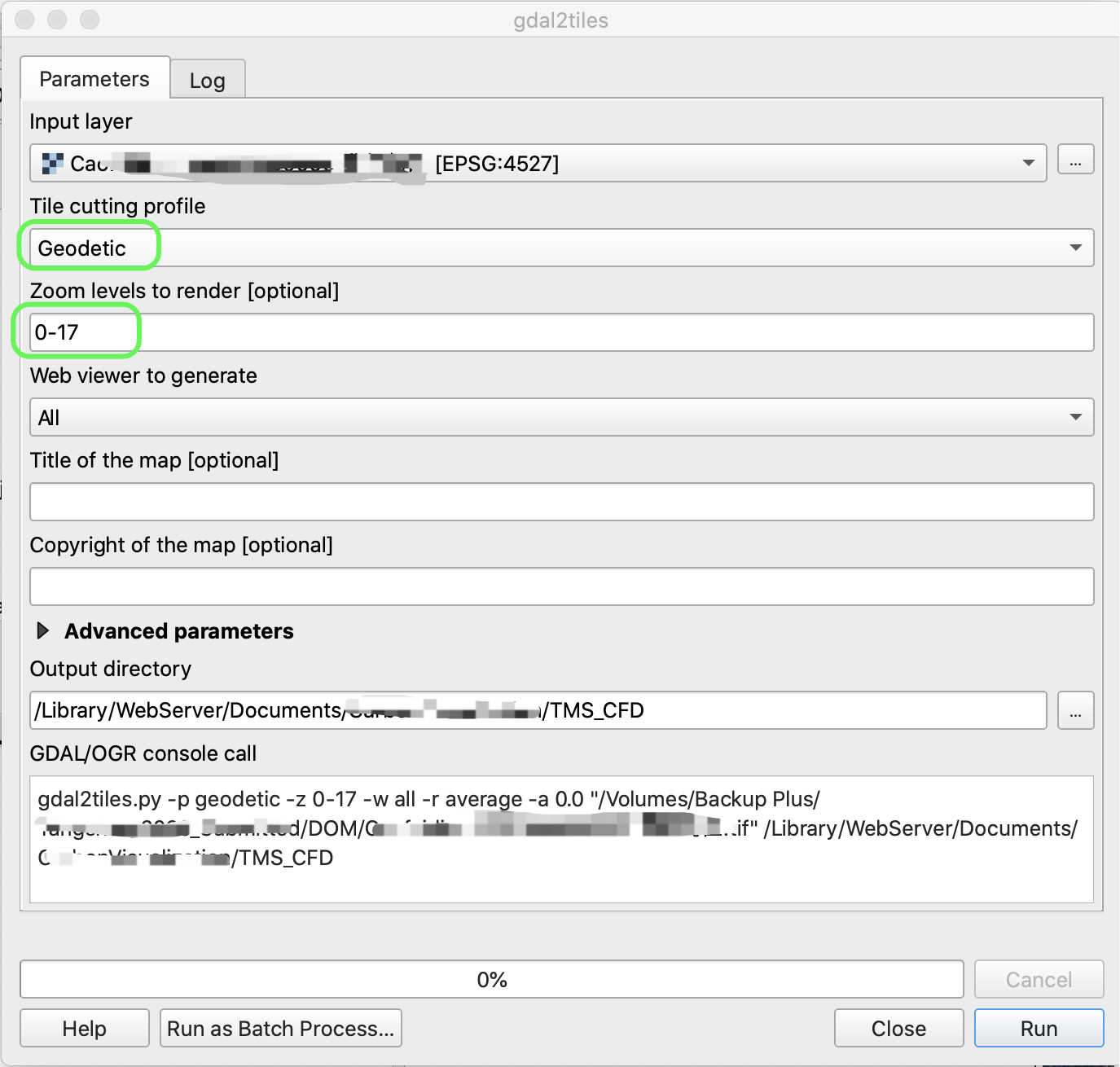

打开生成切片的工具后，加载要切图的TIF文件，Tile cutting profile选择 Geodetic，Zoom level to render 输入要切图的等级 0-17，选择输出目录，然后点击运行，即可生成TMS切片备用，文件切片是会生成tilemapresource.xml文件，内容包含着切片的等级，内容如下。
<?xml version="1.0" encoding="utf-8"?>
<TileMap version="1.0.0" tilemapservice="http://tms.osgeo.org/1.0.0">
<Title>Caofeidian_130209000000.tif</Title>
<Abstract></Abstract>
<SRS>EPSG:4326</SRS>
<BoundingBox minx="118.13447884713771" miny="38.90996157442321" maxx="118.77860415054842" maxy="39.45711598074992"/>
<Origin x="118.13447884713771" y="38.90996157442321"/>
<TileFormat width="256" height="256" mime-type="image/png" extension="png"/>
<TileSets profile="geodetic">
<TileSet href="0" units-per-pixel="0.70312500000000" order="0"/>
<TileSet href="1" units-per-pixel="0.35156250000000" order="1"/>
<TileSet href="2" units-per-pixel="0.17578125000000" order="2"/>
<TileSet href="3" units-per-pixel="0.08789062500000" order="3"/>
<TileSet href="4" units-per-pixel="0.04394531250000" order="4"/>
<TileSet href="5" units-per-pixel="0.02197265625000" order="5"/>
<TileSet href="6" units-per-pixel="0.01098632812500" order="6"/>
<TileSet href="7" units-per-pixel="0.00549316406250" order="7"/>
<TileSet href="8" units-per-pixel="0.00274658203125" order="8"/>
<TileSet href="9" units-per-pixel="0.00137329101562" order="9"/>
<TileSet href="10" units-per-pixel="0.00068664550781" order="10"/>
<TileSet href="11" units-per-pixel="0.00034332275391" order="11"/>
<TileSet href="12" units-per-pixel="0.00017166137695" order="12"/>
<TileSet href="13" units-per-pixel="0.00008583068848" order="13"/>
<TileSet href="14" units-per-pixel="0.00004291534424" order="14"/>
<TileSet href="15" units-per-pixel="0.00002145767212" order="15"/>
<TileSet href="16" units-per-pixel="0.00001072883606" order="16"/>
<TileSet href="17" units-per-pixel="0.00000536441803" order="17"/>
</TileSets>
</TileMap>
2 Cesium加载Tiles
将上一步生成的切片文件夹所有文件和ilemapresource.xml文件放在Web服务器下，在html文件中编写代码调用。 核心代码如下：
//添加TMS图层
var layers = viewer.scene.imageryLayers;
var tmsLayer = layers.addImageryProvider(
new Cesium.TileMapServiceImageryProvider({
url : './TMS_CFD', //url为文件夹地址
})
);
全部代码文件：
<!DOCTYPE html>
<html lang="en">
<head>
<!-- Use correct character set. -->
<meta charset="utf-8">
<!-- Tell IE to use the latest, best version. -->
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<!-- Make the application on mobile take up the full browser screen and disable user scaling. -->
<meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, minimum-scale=1, user-scalable=no">
<title>Hello World!</title>
<script src="../Cesium/Build/Cesium/Cesium.js"></script>
<style>
@import url(../Cesium/Build/Cesium/Widgets/widgets.css);
html, body, #cesiumContainer {
width: 100%; height: 100%; margin: 0; padding: 0; overflow: hidden;
}
</style>
</head>
<body>
<div id="cesiumContainer"></div>
<Script>
Cesium.Ion.defaultAccessToken = 'eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJqdGkiOiJiYjNkZDBkNC0zNDdiLTRjOGMtODc0Yi1jM2RkZjAyODVjODMiLCJpZCI6MzM0MjQsImlhdCI6MTU5ODYxMjIwOX0.PbBBZpemi1z0pnqz8FPwejeF-GrciQqufZ7HI4Z4Wok';
var viewer = new Cesium.Viewer('cesiumContainer', {
imageryProvider : new Cesium.ArcGisMapServerImageryProvider({
url : '//services.arcgisonline.com/ArcGIS/rest/services/World_Imagery/MapServer'
}),
terrainProvider : Cesium.createWorldTerrain({
requestVertexNormals: true
}),
baseLayerPicker : false,
navigationHelpButton:false
});
viewer._cesiumWidget._creditContainer.style.display = "none";//去除版权信息
viewer.animation.container.style.display ='none';//隐藏动画控件
viewer.timeline.container.style.display ='none';//隐藏时间线控件
viewer.geocoder.container.style.display ='none';//隐藏地名查找控件
viewer.cesiumWidget.creditContainer.style.display ='none';//隐藏ceisum标识
viewer.scene.camera.flyTo({
destination: { x: -5078350.364235281, y: 19789794.090862602, z: 13800250.389856659 },
orientation: {
heading: 6.022358768591566,
pitch: -1.5685098881069806,
roll: 0
},
duration: 3.0
});
//添加自定义按钮
window.viewer = viewer;
const toolbar = document.querySelector("div.cesium-viewer-toolbar");
const modeButton = document.querySelector("span.cesium-sceneModePicker-wrapper");
const myButton = document.createElement("button");
myButton.classList.add("cesium-button", "cesium-toolbar-button");
myButton.innerHTML = "X";
toolbar.insertBefore(myButton, modeButton);
//添加TMS图层
var layers = viewer.scene.imageryLayers;
var tmsLayer = layers.addImageryProvider(
new Cesium.TileMapServiceImageryProvider({
url : './TMS_CFD', //url为文件夹地址
})
);
</Script>
</body>
</html>

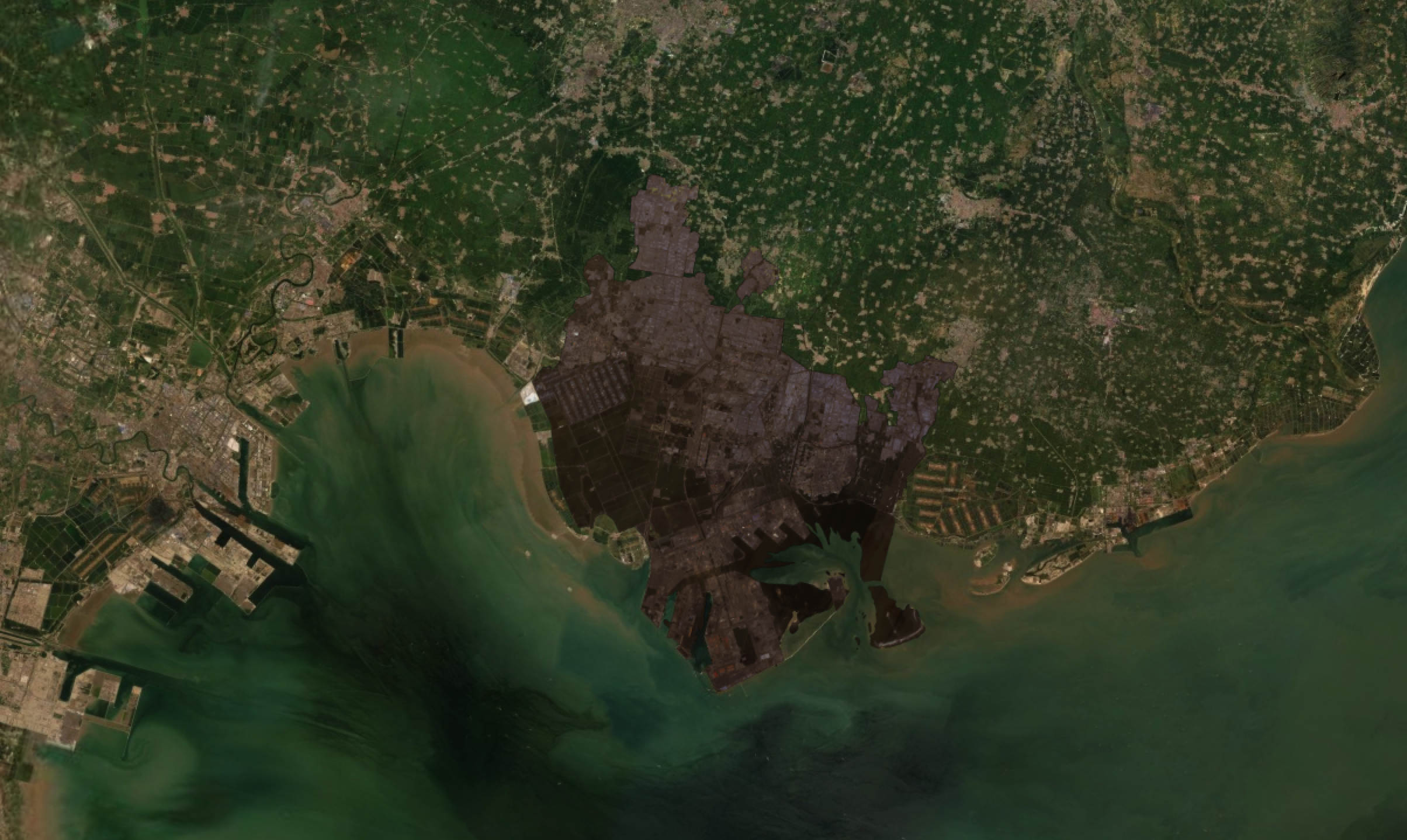

加载后的效果图：
